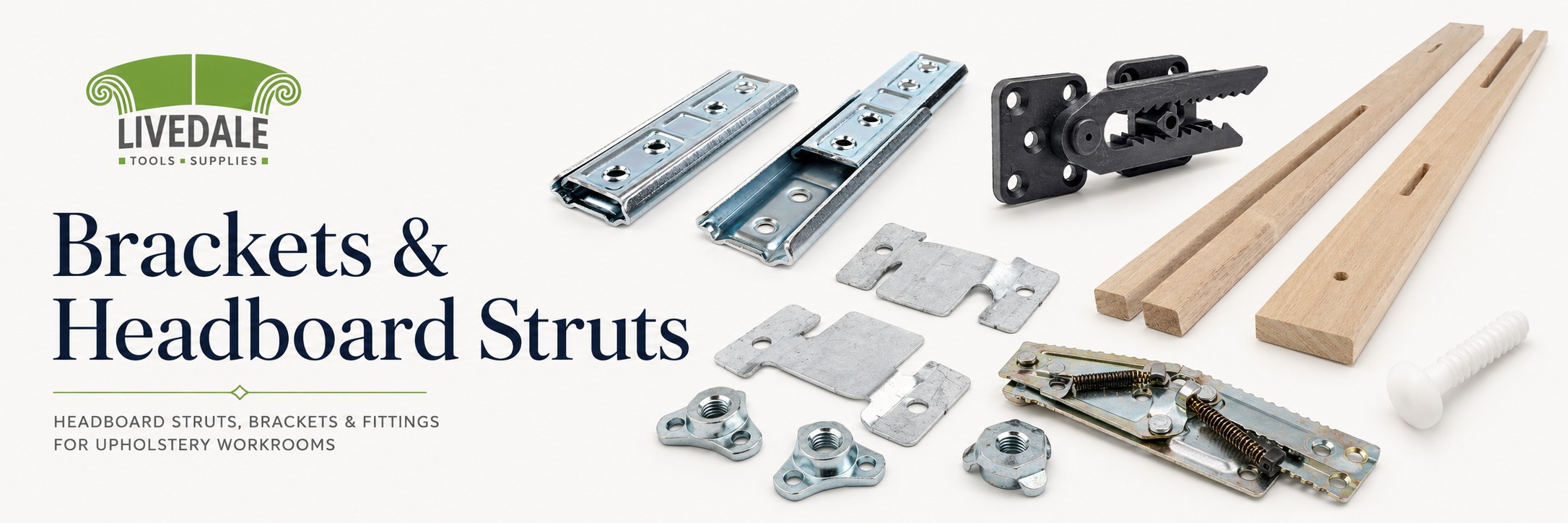

Brackets & Headboard Struts

Headboard Struts and Furniture Connector Brackets

Shop headboard struts and furniture connector brackets for bed manufacture, upholstered headboards, sectional furniture, removable panels and furniture assembly. Livedale supplies hardwood headboard struts, headboard bolts and washers, sliding wall-mount brackets, sectional furniture connectors and nylon arm-facing fixing dowels for professional upholsterers, bed manufacturers, furniture makers and repair workshops.

These products are used where a furniture component must be supported, aligned or joined while remaining removable when required. Wooden struts connect suitable headboards to bed bases, sliding brackets allow headboards or upholstered panels to be wall mounted, and interlocking connectors join separate furniture sections without permanently fixing them together.

Choosing the correct hardware depends on the furniture design, component weight, available fixing points and dimensions of the original fitting. Similar-looking brackets may operate differently or require different clearances, so measure the complete component rather than selecting a replacement from its photograph alone.

Shop Headboard and Furniture-Connecting Hardware

The range contains four principal product groups:

• Wooden headboard struts
• Headboard bolts and wall-mounting brackets
• Sectional furniture connector brackets
• Arm-facing fixing dowels

There are no further subcategories beneath this page. The sections below therefore organise the nine available products by their intended use.

Wooden Headboard Struts

Browse wooden headboard struts in three lengths for connecting suitable upholstered headboards to compatible beds and divan bases.

The available sizes are:

• 24-inch wooden headboard struts
• 30-inch wooden headboard struts
• 36-inch wooden headboard struts

The struts are manufactured from hardwood and are offered in pairs, with trade-pack options available for repeated production.

The correct length depends on the headboard height, mattress depth, bed-base fittings and required finished position.

24-Inch Wooden Headboard Struts

The 24-inch hardwood headboard struts measure approximately:

• 600mm long
• 40mm wide
• 12mm thick

This shorter and lighter strut may be suitable for smaller or lower headboards where the mounting points and construction provide adequate support.

Before selecting it, check that sufficient timber will remain above and below the bed-base fixing position to secure the headboard frame correctly.

A shorter strut should not be used merely because it is less expensive. It must provide the required adjustment and fixing area for the particular headboard.

30-Inch Wooden Headboard Struts

The 30-inch hardwood headboard struts measure approximately:

• 760mm long
• 50mm wide
• 17mm thick

This provides a longer and more substantial strut for medium and larger upholstered headboards.

The additional length allows greater positioning adjustment, while the increased width and thickness provide a larger fixing surface at the rear of the headboard.

Check that the bed base, skirting board and wall position allow the longer strut to sit correctly without fouling the floor or another obstruction.

36-Inch Wooden Headboard Struts

The 36-inch hardwood headboard struts measure approximately:

• 920mm long
• 55mm wide
• 18mm thick

These are the longest and most substantial struts currently available within the category.

They may be suitable for taller headboards where a greater distance is required between the bed-base mounting point and the internal timber rail of the upholstered headboard.

A tall headboard can create greater leverage at the mounting points. The complete construction—including the headboard frame, strut fixing, bed fitting and surrounding timber—must therefore be suitable for the size and weight of the finished item.

Choosing the Correct Headboard-Strut Length

Begin by establishing the finished position of the headboard.

Measure:

• Height of the bed base
• Mattress depth
• Total headboard height
• Desired distance above the mattress
• Position of the headboard bolts on the bed
• Position of the structural rail inside the headboard
• Adjustment available within the strut slots
• Distance from the bed to the wall
• Skirting-board projection
• Clearance above the floor

Do not choose the strut solely from the overall headboard height.

A 36-inch strut is not automatically required for every tall headboard, and a 24-inch strut may still be unsuitable for a modest headboard where the bed fittings are unusually low.

Create a simple side-elevation drawing where the relationship between the bed, mattress, headboard and fixing points is not immediately clear.

Designing an Upholstered Headboard for Struts

The internal headboard frame must provide sound timber into which the struts can be fixed.

Plan the fixing area before adding foam, wadding and upholstery fabric.

The timber rail should:

• Be wide enough for the intended screws or bolts
• Be thick enough to resist splitting
• Run squarely across the headboard
• Be securely joined to the remaining frame
• Sit at the correct height
• Be accessible from the rear
• Provide room for both struts
• Remain clear of decorative buttons or other fittings

Do not attach headboard struts only to thin fibreboard, cardboard, foam or upholstery fabric.

These materials may form part of the finished headboard panel, but they are not an adequate substitute for a properly constructed timber fixing rail.

For suitable panel materials, browse upholstery cardboard and fibreboard.

Positioning Headboard Struts

Both struts should be installed:

• At the same height
• Parallel to one another
• Square to the headboard
• Equally spaced from the centre line
• Over sound internal timber
• In positions compatible with the bed-base fittings

Mark the centre of the headboard first, then establish equal left- and right-hand strut positions.

Measure the bed-base bolt spacing before drilling the headboard. Do not assume every bed uses one standard distance.

Offer the unfinished or partly finished headboard to the bed where practical and check:

• Overall height
• Level
• Mattress clearance
• Wall clearance
• Strut alignment
• Bolt position
• Stability
• Access for tightening

Correcting the strut position is considerably easier before the rear of the headboard has been neatly lined and finished.

Fixing Wooden Struts to the Headboard

Use screws or bolts suited to the hardwood strut and internal headboard frame.

The fixing should be long enough to provide secure penetration without passing through the visible front of the headboard.

Before fitting:

• Check the screw length
• Drill appropriate pilot holes
• Avoid fixing too close to the edge
• Check for decorative buttons and wires
• Keep the strut square
• Use several appropriately spaced fixings
• Avoid overtightening
• Confirm the timber is not split

Pilot holes can reduce the risk of splitting both the hardwood strut and the timber rail.

Countersunk screw heads should sit flush where required, but they should not be driven so deeply that they crush or seriously weaken the strut.

Headboard Bolts and Washers

The combined headboard bolt and washer is supplied as a pair for connecting suitable wooden struts to compatible bed-base fittings.

The bolt passes through the adjustable slot or opening in the wooden strut and enters the threaded fitting within the bed base.

The washer helps spread the clamping force across the timber and reduces the risk of the bolt head pulling into the strut.

Before ordering or fitting, check:

• Bolt thread diameter
• Thread pitch
• Bolt length
• Washer diameter
• Bed-base fitting
• Strut-slot width
• Available tightening clearance
• Condition of the receiving thread

A bolt that begins to enter a threaded fitting is not necessarily the correct thread. Stop if it binds after the first turn or two.

Forcing a mismatched bolt can damage both components and make a straightforward headboard installation rather less straightforward.

Tightening Headboard Bolts

Begin both bolts by hand to reduce the risk of cross-threading.

Position the headboard at the intended height before fully tightening them.

Tighten each side progressively so the headboard remains level. Do not completely tighten one side while the other remains loose.

The bolts should hold the struts securely without crushing the timber.

After installation:

• Check the headboard is level
• Apply light controlled pressure
• Listen for movement
• Check the bed remains stable
• Retighten if the timber settles
• Recheck after the furniture has been used

Persistent movement may indicate loose bed-base fittings, inadequate strut support or an unsuitable headboard construction rather than simply an undertightened bolt.

Sliding Wall-Mounted Headboard Brackets

The 12cm sliding headboard connector bracket provides a removable wall-mounting system for suitable headboards and upholstered panels.

Each product comprises a male and female bracket that slide or interlock together. Two complete bracket sets are normally required to hang one headboard.

One section is attached to the wall and the corresponding section is fixed to the rear of the headboard. The headboard is then lowered into position so the two components engage.

Potential uses include:

• Wall-mounted upholstered headboards
• Hotel bedroom headboards
• Decorative padded wall panels
• Removable furniture panels
• Bed installations without suitable base fittings
• Headboards that need to be removed for decorating or maintenance

Wall-Mounted or Bed-Mounted Headboards?

Wooden struts and sliding brackets provide different installation methods.

Choose wooden struts where:

• The bed or divan has compatible headboard fittings
• The headboard should move with the bed
• Height adjustment is required
• Wall drilling is undesirable
• The headboard construction suits strut mounting

Choose sliding wall brackets where:

• The headboard should remain fixed to the wall
• The bed has no suitable headboard fittings
• A floating or hotel-style installation is required
• The headboard must sit independently of the bed
• The wall and fixings can support the finished load

A wall-mounted headboard may remain visually aligned when the bed moves slightly, but the gap and relationship between the headboard and mattress must be planned carefully.

A bed-mounted headboard moves with the furniture but places its loads through the bed-base fittings.

Neither method is universally better. The correct choice depends on the installation.

Measuring for Wall-Mounted Brackets

Before fixing the brackets, determine:

• Finished headboard height
• Mattress and bed-base height
• Headboard width
• Centre line
• Position of internal timber rails
• Bracket spacing
• Wall construction
• Skirting-board projection
• Available lowering clearance
• Position of sockets and switches
• Required gap behind the headboard

Both wall brackets must be level with one another, and the corresponding headboard brackets must match their spacing precisely.

Allow enough vertical clearance to lift the headboard above the engaged position during installation and future removal.

Where the headboard reaches close to the ceiling, cornice or shelf, confirm that this lifting movement remains possible.

Fixing Headboard Brackets to the Wall

The wall fixings must suit the wall construction and finished headboard weight.

A brick wall, concrete wall, timber stud, blockwork wall and plasterboard lining may each require a different fixing method.

Do not assume that the screws or plugs supplied with another product are suitable for every wall.

Identify:

• Wall material
• Position of studs or masonry
• Headboard weight
• Number of bracket sets
• Fixing-hole diameter
• Required screw length
• Hidden pipes or electrical cables
• Condition of the wall surface

Where the wall construction or required fixing is uncertain, obtain competent installation advice.

An upholstered headboard may be larger and heavier than it appears once the timber frame, panel, foam and covering material are considered.

Furniture Connector Brackets

Furniture connector brackets join separate pieces of furniture while allowing them to be disconnected when necessary.

The current range includes:

• Interlocking metal connector brackets
• Heavy-duty metal sectional-furniture connectors
• Metal and plastic furniture-base connectors

They may be used on suitable:

• Sectional sofas
• Modular seating
• Furniture bases
• Removable arms
• Upholstered panels
• Bed sections
• Display furniture
• Transportable furniture components

The connector must be fitted in the correct orientation and position so both parts engage fully when the furniture sections are brought together.

Interlocking Metal Connector Brackets

Interlocking metal connector brackets provide a neat connection between two suitable furniture components while allowing them to be separated again.

They are sold individually or in trade packs.

Use them where the furniture design provides:

• Two corresponding fixing surfaces
• Adequate structural timber
• Sufficient engagement clearance
• A means of preventing unwanted movement
• Access for future separation

Check whether one or two corresponding components are required for each completed connection.

The product title uses the plural word “brackets”, but the live listing states that they are sold individually. The quantity required for one furniture connection should therefore be made unambiguous on the product page.

Heavy-Duty Metal Sectional-Furniture Connectors

The metal connector bracket is described as a heavy-duty clip for linking sectional furniture.

It can help connect separate seating or furniture units while allowing them to be split for delivery, installation or later relocation.

Potential applications include:

• Modular sofas
• Sectional seating
• Commercial lounge furniture
• Linked furniture bases
• Furniture designed for restricted-access delivery
• Seating layouts that may later be rearranged

Before installation, establish:

• Direction of engagement
• Required bracket height
• Number of connectors
• Frame thickness
• Screw positions
• Floor clearance
• Whether the units must resist sideways or upward movement
• How the furniture will be separated

The connectors should align without forcing the furniture frames out of square.

Metal and Plastic Furniture-Base Connectors

The metal and plastic connector bracket is intended for linking suitable furniture bases.

The metal and plastic components work together to connect the furniture sections while allowing later separation.

When replacing an existing connector, compare:

• Overall length and width
• Plastic component shape
• Metal component profile
• Engagement direction
• Screw-hole positions
• Installation height
• Clearance beneath the furniture
• Existing corresponding component

Where possible, replace both matching sides rather than fitting one new connector against a badly worn or incompatible old component.

Positioning Sectional-Furniture Connectors

Place connectors where they can transfer the intended load into sound furniture-frame material.

Do not fix them solely to:

• Thin hardboard
• Base cloth
• Upholstery cardboard
• Foam
• Fabric
• Loose or split timber

The connector position should also avoid:

• Springs
• Webbing
• Recliner mechanisms
• Electrical cables
• Feet and castors
• Upholstery staples
• Moving components

Temporarily place the furniture units together and mark their relationship before drilling.

Both connector halves should meet at the same height and angle. Even a strong bracket cannot compensate for two furniture bases installed at different levels.

Joining and Separating Modular Furniture

Before joining sections:

• Place the furniture on a level floor
• Check that feet or castors match
• Align the fronts and backs
• Confirm the connectors are at matching heights
• Keep upholstery fabric clear
• Engage the brackets fully
• Test for movement
• Check that no cable or lining is trapped

To separate the furniture, follow the direction required by the connector design. Some sections must be lifted before being pulled apart.

Do not drag joined modular furniture across the floor. This can place excessive sideways force on the connectors, frames, feet and upholstery.

Separate the units first where they must be moved any meaningful distance.

Arm-Facing Fixing Dowels

The 40mm × 8mm arm-facing fixing dowel is a white nylon fitting used to secure suitable board or sheet materials to secondary panels.

It is particularly suited to removable arm facings and comparable upholstered furniture components.

The dowels are supplied in packs of 100 or 1,000 for workroom and production use.

Potential applications include:

• Upholstered arm facings
• Removable decorative panels
• Furniture end panels
• Sheet-material attachment
• Hidden furniture fixings
• Components requiring clean visible surfaces

The dowel allows the facing to be located without placing visible screws or staples through the finished front surface.

Installing Arm-Facing Dowels

Measure and drill the mating holes accurately.

Check:

• Dowel diameter
• Dowel length
• Hole diameter
• Hole depth
• Material thickness
• Panel alignment
• Number of dowels required
• Edge clearance
• Required tightness of fit

The fixing holes must be square and accurately positioned. Misaligned dowels can prevent the panel from seating correctly or cause the board and surrounding timber to split when forced.

A drilling jig or repeatable template may be useful where several identical furniture components are being manufactured.

Test the fit before the facing is fully upholstered.

Once foam, wadding and fabric have been added, an incorrect hole position becomes more difficult to see and substantially more irritating to correct.

Designing a Removable Arm Facing

A removable arm-facing panel should be planned as part of the furniture construction rather than added as an afterthought.

Consider:

• Panel material
• Finished thickness
• Dowel positions
• Removal clearance
• Upholstery allowance
• Fabric direction
• Piping or trim
• Access for future removal
• Relationship with the main arm frame
• Whether additional locating points are needed

The facing panel must be firm enough to remain flat but should not be so heavy that it overloads the dowels or becomes difficult to remove.

Browse upholstery cardboard and fibreboard for suitable panel and template materials.

Choosing the Correct Furniture Connector

Begin by identifying what the fitting must do.

Ask whether it needs to:

• Mount a headboard to a bed
• Mount a headboard to a wall
• Join two furniture bases
• Connect modular sofa sections
• Hold a removable upholstered panel
• Align an arm facing
• Permit repeated dismantling
• Carry weight
• Resist sideways movement
• Remain hidden after installation

Then compare:

• Dimensions
• Material
• Fixing-hole positions
• Direction of engagement
• Required clearance
• Number of parts supplied
• Pack quantity
• Structural support
• Intended application

The category contains several connectors that perform superficially similar jobs, but they are not one universal interchangeable bracket.

Replacing Existing Brackets and Connectors

Where an original fitting is available, remove it carefully and retain it for comparison.

Measure:

• Overall length
• Overall width
• Thickness
• Hole-centre spacing
• Hole diameter
• Engagement depth
• Closed position
• Open or separated position
• Orientation
• Number used on the furniture

Inspect the surrounding frame for damage.

A failed connector may be the result of:

• Loose screws
• Split timber
• Misalignment
• Furniture being dragged while connected
• Missing matching parts
• Incorrect installation height
• Overloading
• Wear in the corresponding component

Replacing the visible bracket without correcting the underlying cause may result in another failure.

Screws and Fixing Hardware

Most brackets and struts require additional screws, bolts or wall fixings.

Choose hardware that suits:

• Bracket-hole shape
• Timber thickness
• Wall construction
• Expected load
• Required screw-head profile
• Available clearance
• Indoor conditions
• Whether the fixing must be removable

A countersunk screw should sit correctly in a countersunk bracket hole. A pan-head screw may be more suitable where the bracket has a flat or slotted hole.

Do not use a screw head so small that it can pull through the bracket.

Avoid overtightening, particularly into older furniture timber or particle board. Once the hole has been stripped, an additional quarter turn seldom improves matters.

Checking Timber and Panel Condition

Headboard and furniture brackets depend on the material around them.

Before installation, inspect for:

• Split timber
• Loose joints
• Enlarged screw holes
• Crumbling board
• Delaminated panels
• Water damage
• Previous repairs
• Missing strengthening blocks
• Insufficient frame thickness
• Misaligned furniture sections

Load-bearing or heavily stressed connectors should be fixed into suitable structural material.

Thin decorative panels, fibreboard and upholstery layers may conceal the frame but should not automatically be treated as the frame.

Common Installation Mistakes

Avoid:

• Selecting a headboard strut by length alone
• Fixing struts into thin board instead of structural timber
• Installing the two struts at different heights
• Failing to check bed-base bolt spacing
• Forcing an incorrect bolt thread
• Wall mounting without identifying the wall construction
• Using only one bracket set on a large headboard
• Fitting furniture connectors at different heights
• Installing connector halves in opposing directions
• Attaching heavy-duty brackets only to base board
• Moving sectional furniture while it remains connected
• Upholstering a removable facing before testing its dowels
• Assuming an individually sold bracket is a complete pair
• Ordering by photograph without measuring the original fitting

Good furniture hardware is relatively simple. Most difficulties arise when simple hardware is installed in the wrong position.

Related Furniture Hardware

This category contains headboard and furniture-connecting hardware only.

For threaded furniture inserts, furniture-leg brackets, dowel screws and related fixings, browse T Nuts, D Nuts & Fixings.

For ottoman hinges, gas-strut fittings, recliner controls and rocker components, browse Hinges & Mechanisms.

Return to the parent Furniture Fixings & Brackets category to compare all three furniture-hardware sections.

Browse professional upholstery tools for measuring, marking, cutting and furniture-assembly equipment.

Explore PVA and hot melt adhesives for suitable furniture and panel-bonding applications.

Browse upholstery cardboard and fibreboard for headboard panels, arm facings and furniture templates.

Explore the complete Workroom Supplies range for upholstery threads, tapes, adhesives, fire labels and other furniture-making essentials.

Trade Headboard Struts and Furniture Connectors

Livedale supplies hardwood headboard struts, wall-mounting brackets, sectional furniture connectors and arm-facing dowels to professional upholsterers, furniture manufacturers, bed and headboard makers, hotel-furniture suppliers and repair workshops throughout the UK.

Several products are available individually and in larger trade packs, allowing customers to purchase for one-off repairs or repeated furniture production.

Approved trade customers can access preferential trade pricing across eligible products after registering for a trade account.

Browse the products above to find the appropriate headboard strut, mounting bracket or furniture connector for your next bed, headboard, sectional-seating or furniture-manufacturing project.
